PRODUCT Description

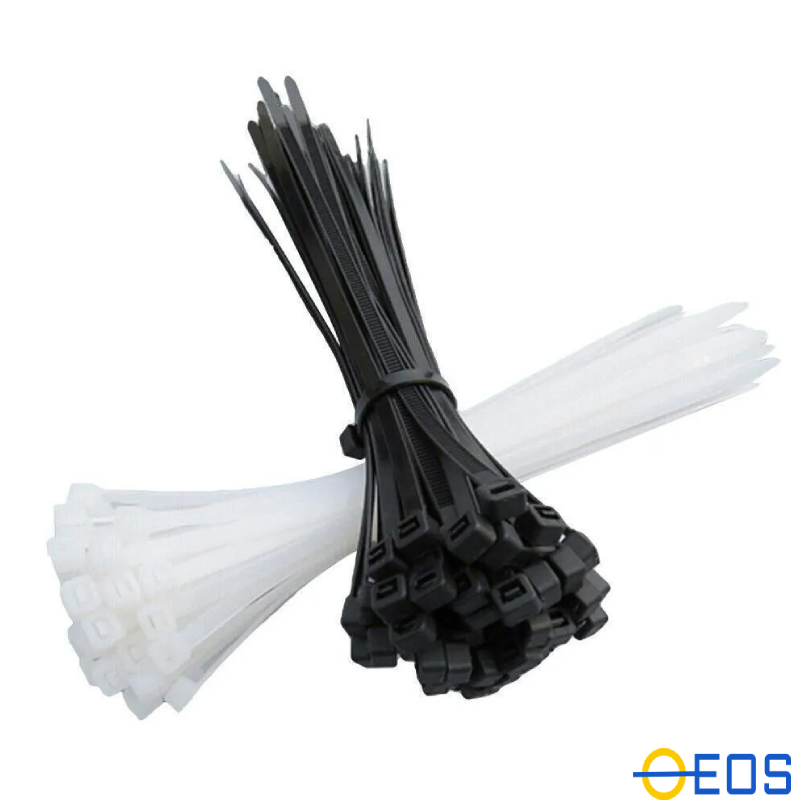

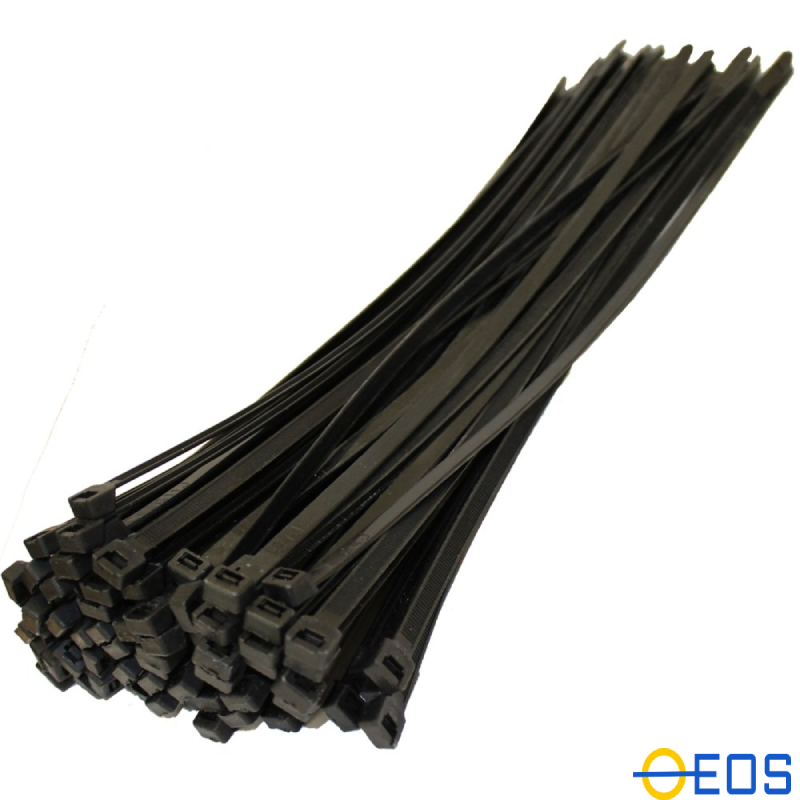

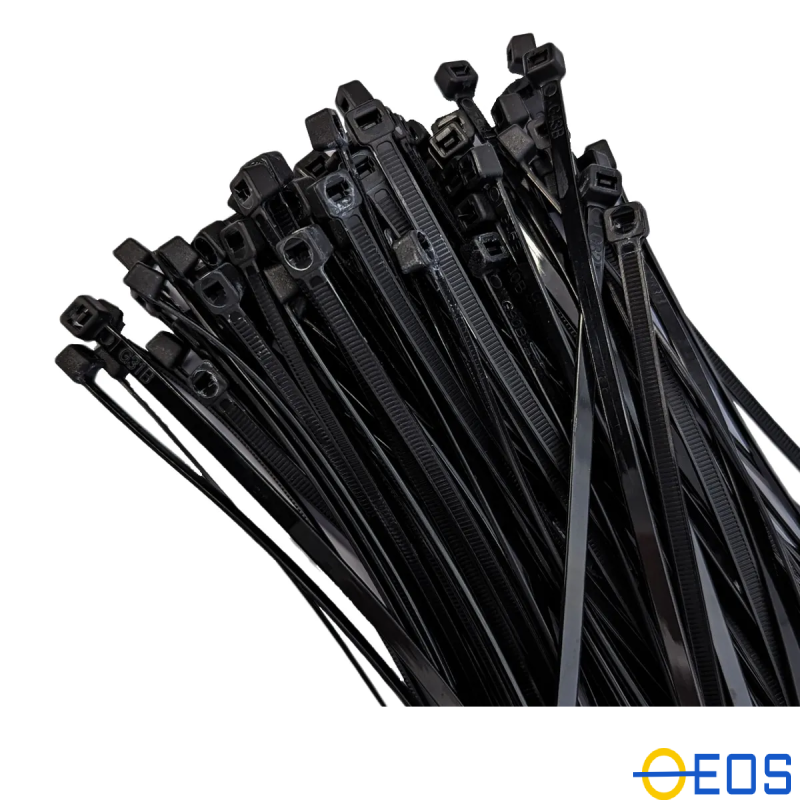

Cable ties are the most extensively used fasteners in the world, with numerous applications across various industries and sectors. Owing to the ease of application, economical costing and guarantee of firm fastening over time, our non releasable nylon cable ties have now replaced most other old fashioned binding instruments such as rubber bands, wires, adhesive tape and ropes. Our nylon cable ties are available in a comprehensive range of sizes starting from 75 MM (3 inches) and going up to 1200 MM (4 feet), with tensile strength of up to 120 kg(f).

PRODUCT Details

Colour: Natural, Black
Material: Nylon 66
Operating Temp : -40 C to +85 C
Flammability Rating : UL 94V-2
Packing : 100 pcs bag in all sizes & 1000 pcs. bag upto 200mm length (100 Pcs/Pkt & 1000 Pcs/K)
Get Quotation: Get a Quote

Specifiction

*SIZE*		*NOMINAL* *OVERALL* *LENGTH*		*STRAP WIDTH*	*MAX CABLE*	*BUNDLE* *DIAMETER*	*STANDARD* *PACKAGING* *(PIECES/PACKET)*	*MIN LOOP* *TENSILE* *STRENGTH*
	mm	inch	mm	Inch	mm	inch		kgf	lbs
*MINIATURE SERIES*
75 X 2.5	75	3	2.5	0.10	16	0.63	100/1000	8	18
100 X 2.5	100	4	2.5	0.10	20	0.79	100/1000	8	18
150 x 2.5	150	6	2.5	0.10	35	1.38	100	8	18
200 X 2.5	200	8	2.5	0.10	45	1.77	100	8	18
*INTERMEDIATE SERIES*
150 X 3.6	150	6	3.6	0.14	35	1.38	100	18	40
200 X 3.6	200	8	3.6	0.14	45	1.77	100	18	40
250 X 3.6	250	10	3.6	1.14	65	2.56	100	18	40
300 x 3.6	300	12	3.6	0.14	75	2.95	100	18	40
350 X 3.6	350	14	3.6	0.14	90	3.54	100	18	40
STANDARD SERIES
200 X 4.8	200	8	4.8	0.19	45	1.77	100	22.7	50
250 X 4.8	250	10	4.8	0.19	60	2.36	100	22.7	50
300 X 4.8	300	12	4.8	0.19	75	2.95	100	22.7	50
364 X 4.8	364	14	4.8	0.19	95	3.74	100	22.7	50
450 X 4.8	450	18	4.8	0.19	115	4.53	100	22.7	50
*HEAVY DUTY SERIES*
200 X 7.6	200	8	7.6	0.30	45	1.77	100	54.4	120
250 X 7.6	250	10	7.6	0.30	65	2.56	100	54.4	120
300 X 7.6	300	12	7.6	0.30	75	2.95	100	54.4	120
364 X 7.6	364	14	7.6	0.30	95	3.74	100	54.4	120
430 X 7.6	430	17	7.6	0.30	110	4.33	100	54.4	120
530 X 7.6	530	21	7.6	0.30	140	5.51	100	54.4	120
750 X 7.6	750	30	7.6	0.30	220	8.66	100	54.4	120
460 X 8.8	460	25	8.8	0.35	175	6.89	100	80	175
530 X 8.8	530	25	8.8	0.35	175	6.89	100	80	175
630 X 8.8	630	25	8.8	0.35	175	6.89	100	80	175
710 X 8.8	710	28	8.8	0.35	200	7.87	100	80	175
800 X 9	800	32	9	0.35	220	8.66	100	80	175
900 X 9	900	36	9	0.35	250	9.84	100	80	175

Features

Cable tie is an economical & versatile method of cable/wire bunching systems

Cable tie has self-locking & one-piece construction which ensure the fast & easy installation.

Non releasable cable tie, once locked cannot be opened or reused

Properties

All products are made from virgin polyethylene	High tensile strength and puncture resistance
Light weight hence ease of handling	Outstanding flexibility hence suited to cover irregular shapes
Protective UV stabilized on both sides and hence lasts longer even in sunny outdoors	Heat sealed hemmings with strong joints; no stiches
100% waterproof, leak proof, weatherproof, oil proof and rot proof	Easily repairable and cost-effective
100% recyclable; environment-friendly	Fire retardant
Strong aluminium passivity eyelets – hook fixed	Tough and durable
Resistant to Stains Acids, Dyes and most Chemicals

Application

Automobile	Chemicals and Refineries	Drug & Pharma
Networking	Locomotive	Oil, Gas & Offshore
Packaging Industries	Retail Chain Stores	Ship & Marines
Electrical/Electronics	Windmill	Solar
Telecom	White Goods & Appliances
